My Personal PCB Checklist

Updated: Apr 16

As I am working to improve my PCB design capabilities, I will update this list as a sort of "quality checklist." If you have suggestions to add to this list, drop me a note!

My primary design tool at this point is EasyEDA Pro, and my primary PCB producer is JLCPCB.

General Checklist

  • Four-layer PCB for most projects. If using six layers, stackup of signal-ground-power-signal-ground-signal.

  • Inner VCC plane

  • Inner GND plane

  • Top layer with copper fill (VCC?). This is required by JLCPCB if using track spacing of less than 0.15mm.

  • Bottom layer with copper fill (GND?). This is required by JLCPCB if using track spacing of less than 0.15mm.

  • 1oz copper

  • Via drill hole (inner diameter) of 0.3mm. Via outer diameter of 0.4mm. Smaller values will significantly increase the PCB cost.

  • Track width of 0.152mm. Wider for VCC/GND, as possible.

  • Track spacing of 0.152mm

  • Pad spacing of 0.152mm

  • Via spacing of 0.152mm

  • Board outline spacing of 0.3mm

  • Standoffs

  • Test points

  • ENIG for BGA PCBs

  • Via Covering: Epoxy Filled & Capped for BGA PCBs when using via-in-pad

  • ...

I have some additional thoughts captured here: 486DLC >>> 486DX PCB Design Updates (

Lattice CT256 BGA

As I make progress on routing a 256-pin iCE40 FPGA, I'll post my config here.

Part: ICE40HX8K-CT256

Balls: 256

Package: caBGA

Size: 16mm x 16mm

Pitch: 0.8 mm

I/O: 206

General lnformation

Six-layer PCB

Below are Lattice recommendations for this BGA, along with JLCPCB capabilities. Bolded values are what I am using.


Lattice Sample Spec

JLCPCB Capability (as of Feb 2024)

BGA Solder Pad Size

0.2000 mm

0.2500 mm Via-in-pad recommended: 0.4000 mm System device default: 0.3600 mm

BGA Pad Solder Mask

0.3400 mm


BGA Via Size (Drill)

0.1270 mm

0.2000 mm

BGA Via Size (Pad)

0.2540 mm

0.3000 mm

Trace Width

0.1270 mm

0.0900 mm

Trace Spacing

0.0889 mm

0.0900 mm

BGA Pad Spacing

0.1270 mm

Trace to BGA Pad Spacing

0.1270 mm

Via Copper to BGA Pad Spacing

0.1270 mm

innerPlane Network Spacing

copperRegion Network Spacing (pad to pour)

0.2000 mm

No support for buried or blind vias.

General Steps

  1. Create a new project in EasyEDA Pro. Configure stack up with six layers, four of which should be signal and two planes. Example from bottom up: signal, signal, POWER, GND, signal, signal. See TN1074.

  2. Configure design rules according to the table above.

  3. Start with the CE40HX8K-CT256 FPGA device from the EasyEDA Pro System library. The default pad is 0.3600 mm.

  4. Apply fanout setting, using Via in Pad.

  5. Delete the pads in the outer three rows/columns. The Filter tab is handy for quickly filtering selectable objects to just the vias. Then, drag around vias to be deleted and delete.

  6. Place capacitors and connect with vias.

  7. Add copper fills on inner POWER plane.

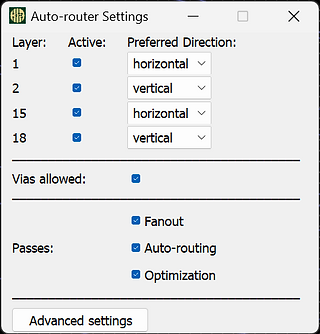

  8. Route all signals.

  9. Check for DRC errors and clean up appropriately.

Lattice Sample Recommendation

EasyEDA Pro Defaults (JLCPBC multi-layer)

EasyEDA Pro - Routed caBGA for JLCPCB

Changes from EasyEDA Pro Defaults

  • Track width to 0.1mm

  • Track spacing to 0.1mm

  • Via drill size to 0.2mm

  • Via diameter to 0.3mm

  • InnerPlane Network Setting (pad to pour) to 0.2mm

  • For copper fills, set Optimization to No

  • To consider:

    • Increase BGA pad to 0.4mm (from 0.36mm)

    • Increase via diameter to 0.35mm (from 0.30mm)

  • ...

Additional Info
