Cmod A7 FPGA : Video Test Pattern Generator

Updated: Feb 11, 2022

Below is the configuration I used to get the Xilinx Video Test Pattern Generator (TPG) working on a Digilent Cmod A7 FPGA. This is based on the hardware configuration from VGA from Cmod A7 Working. For this testing, I am using 640x480.


**I found the following course helpful in getting the TPG running on my Cmod A7: Video Processing with FPGA.


Cmod A7 to PmodVGA
Cmod A7 to PmodVGA

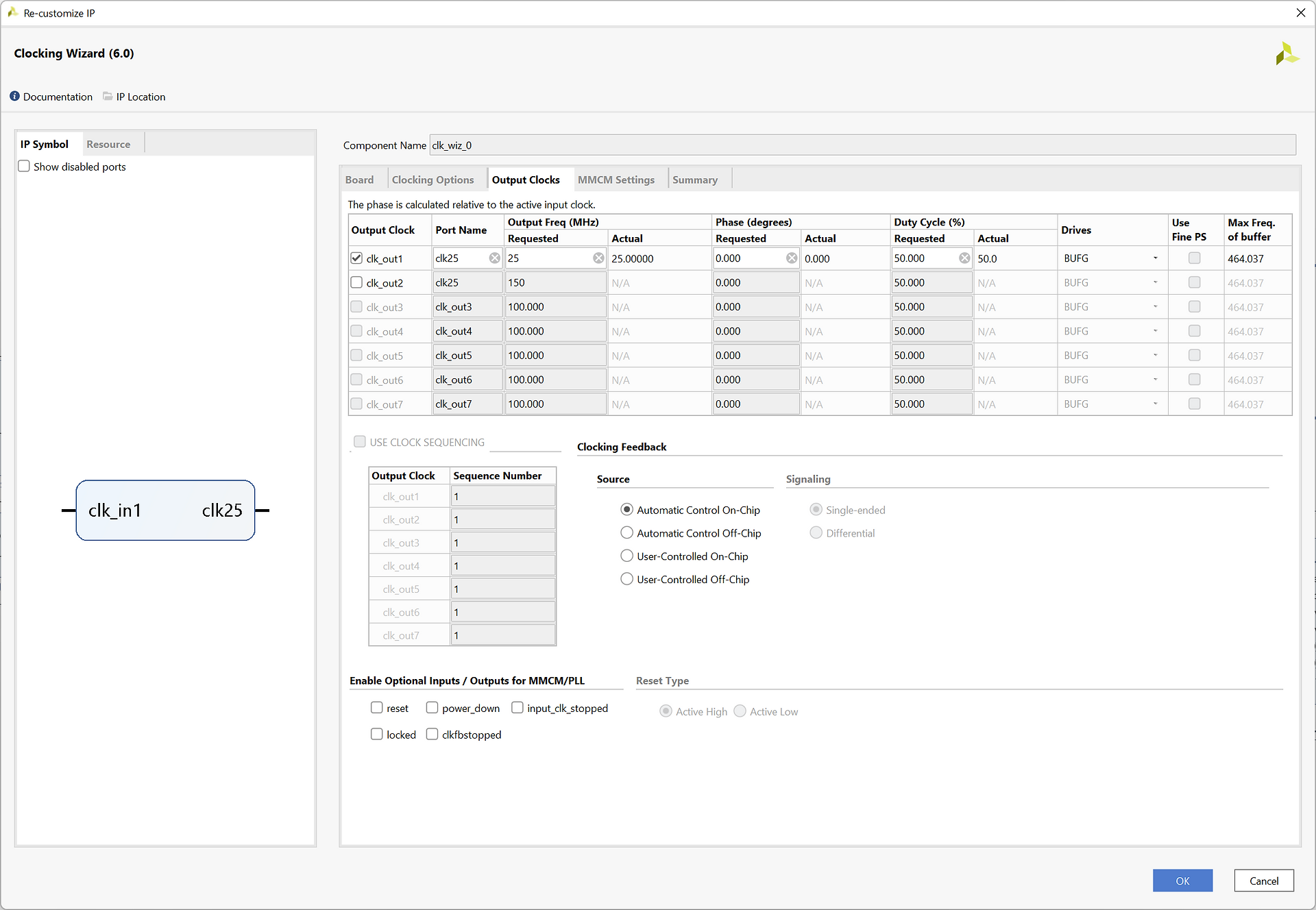

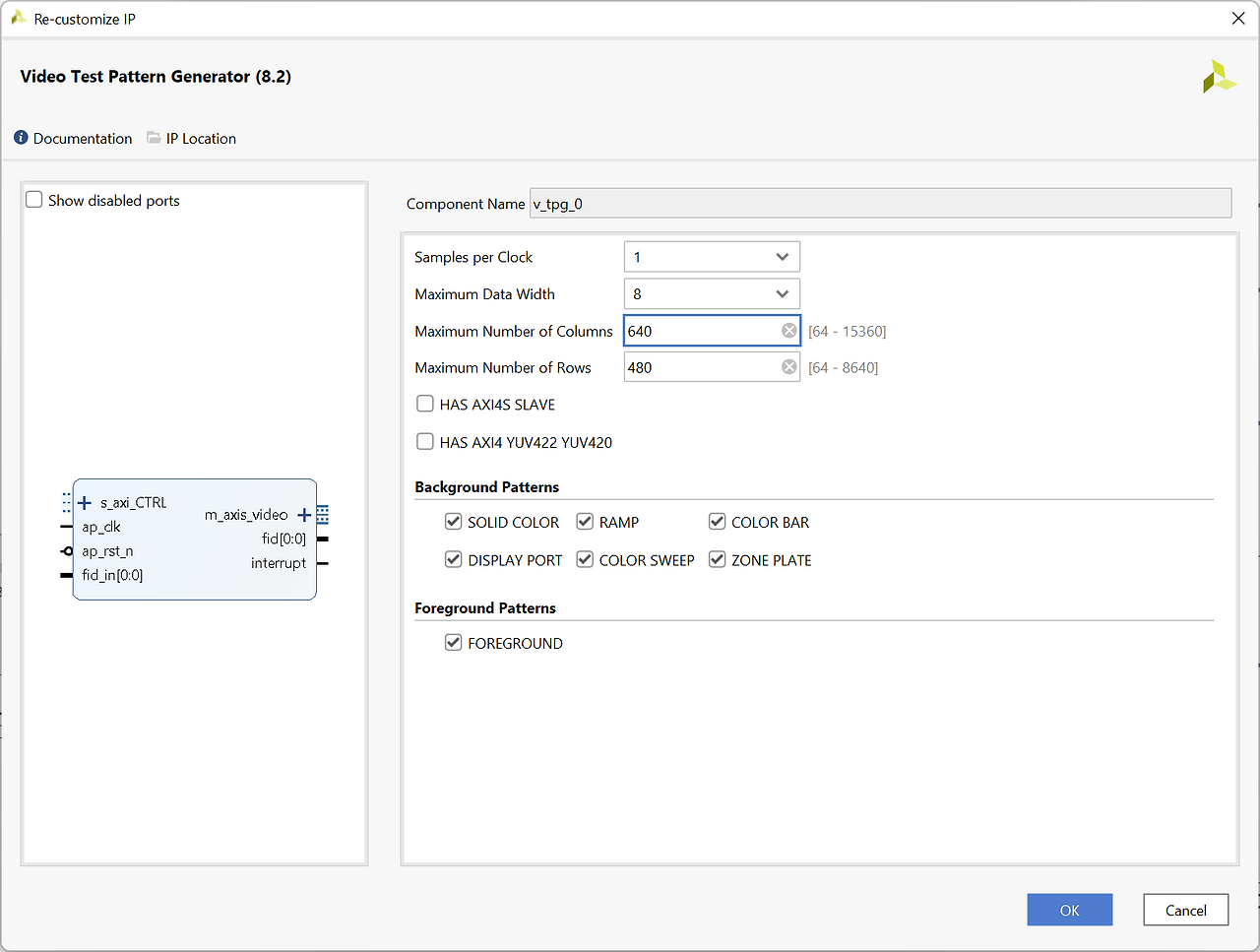

Vivado Block Design
Vivado Block Design


Sample video output
